# **Angled Patch Panels **



## CABLExpress Angled Patch Panels eliminate horizontal cable management,

## and are great for efficient cable management.

[Home](https://www.cablexpress.com/) »[Products](https://www.cablexpress.com/products/) »[Fiber Patch Panels and Enclosures »](https://www.cablexpress.com/data-center/fiber-patch-panels-enclosures/)Angled Patch Panels

![Angled-family-shot](https://www.cablexpress.com/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/Angled-family-shot.jpg "Angled-family-shot")

## ENHANCED CABLE MANAGEMENT

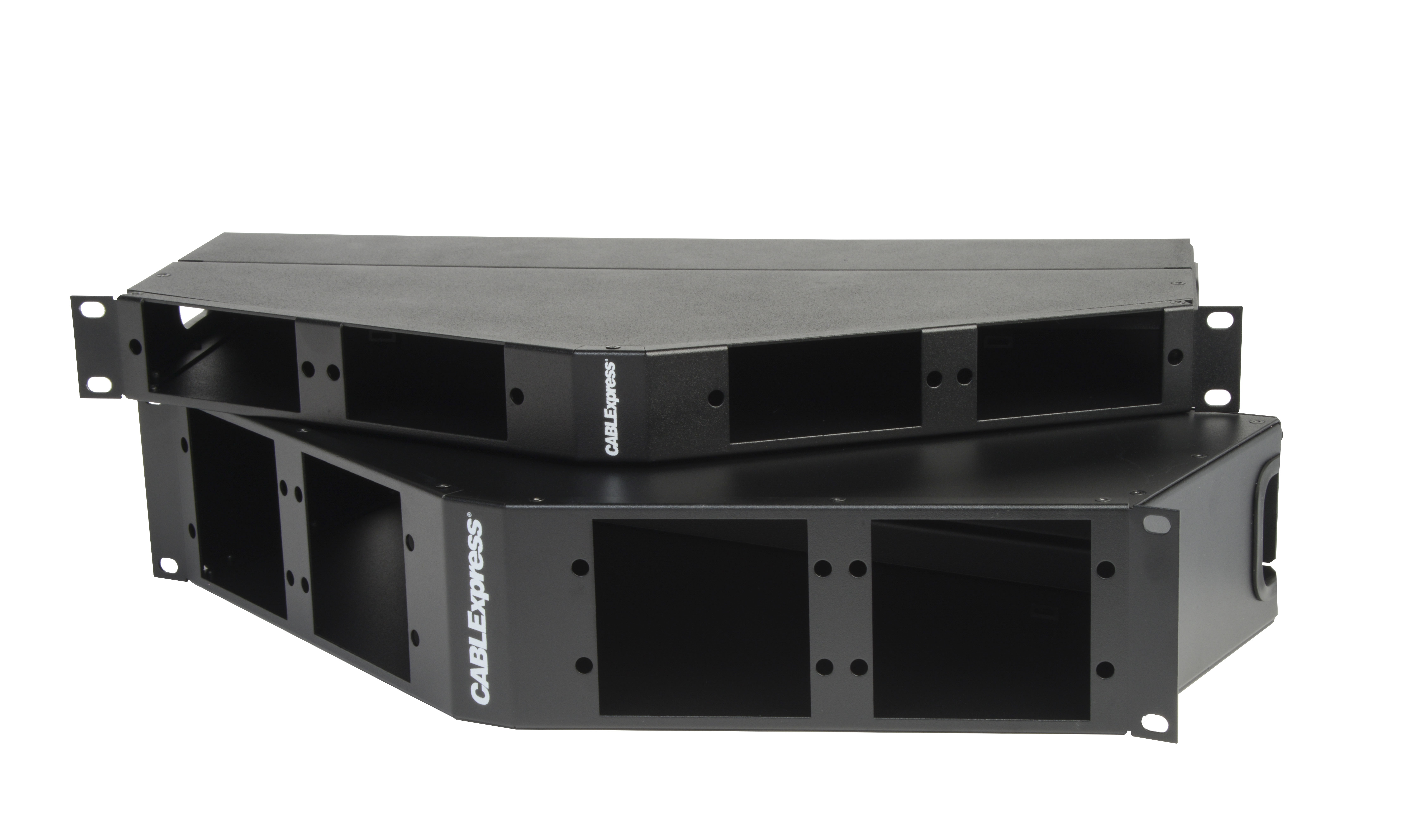

 Designed for enhanced cable management, CABLExpress® angled patch panels are slanted to route patch cords directly into vertical cable managers on either side of the panel.

This enables faster installation and eliminates the need for horizontal cable management.

Simply route your cables cleanly into vertical managers and keep your cabling neat and tidy.

### Product Features

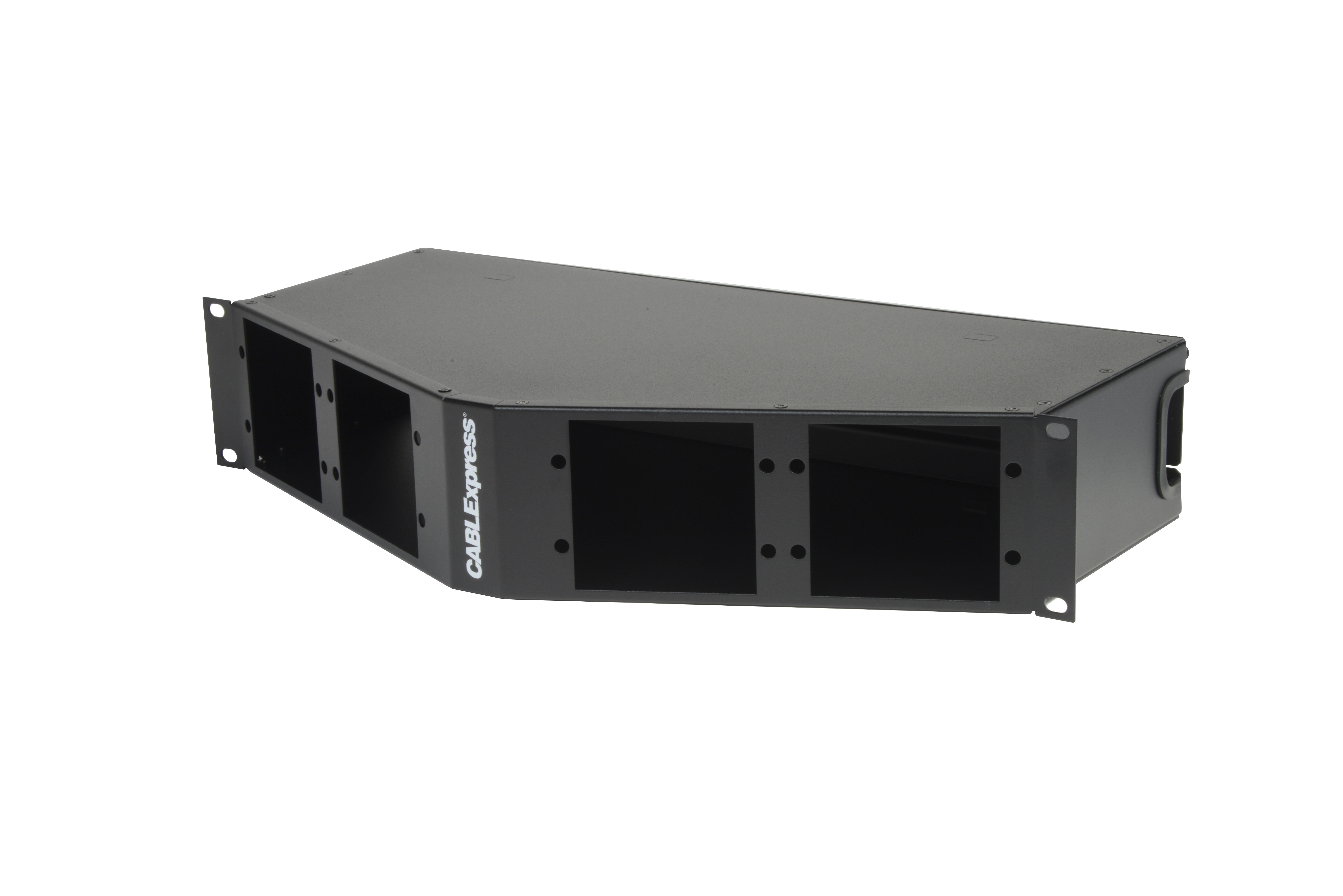

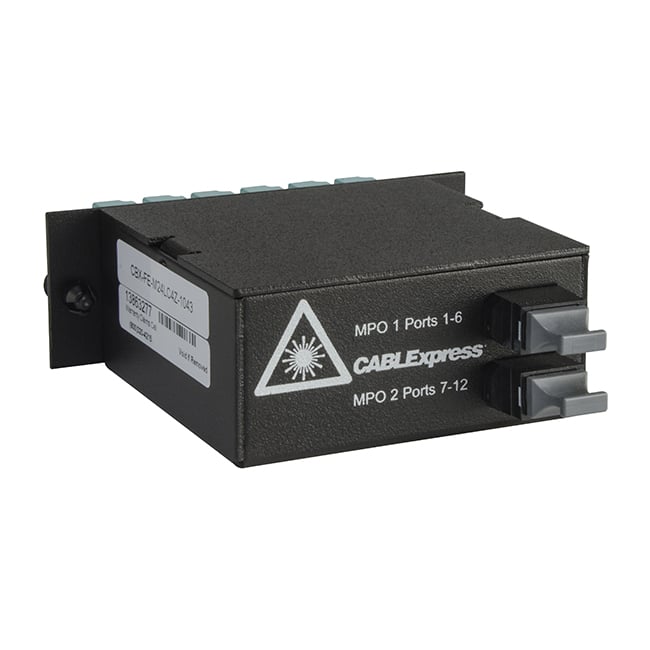

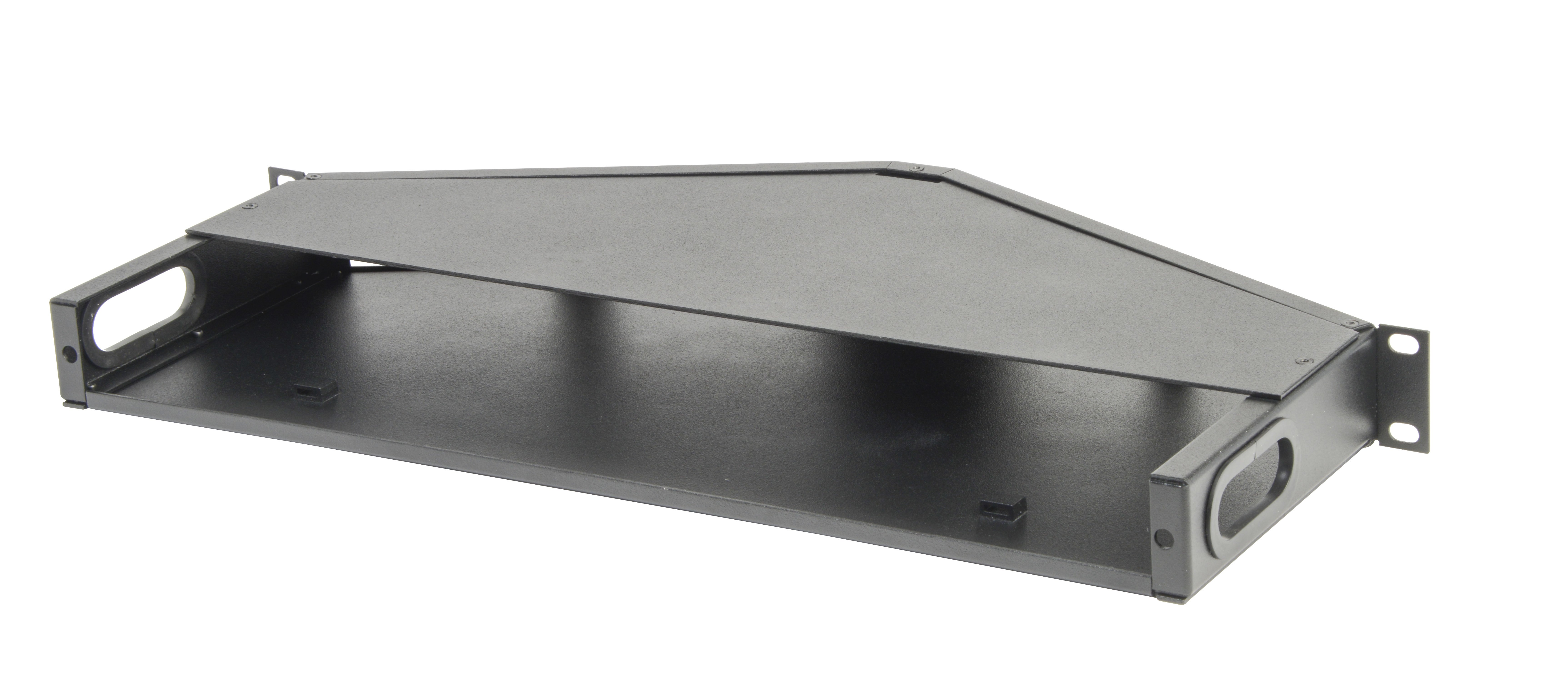

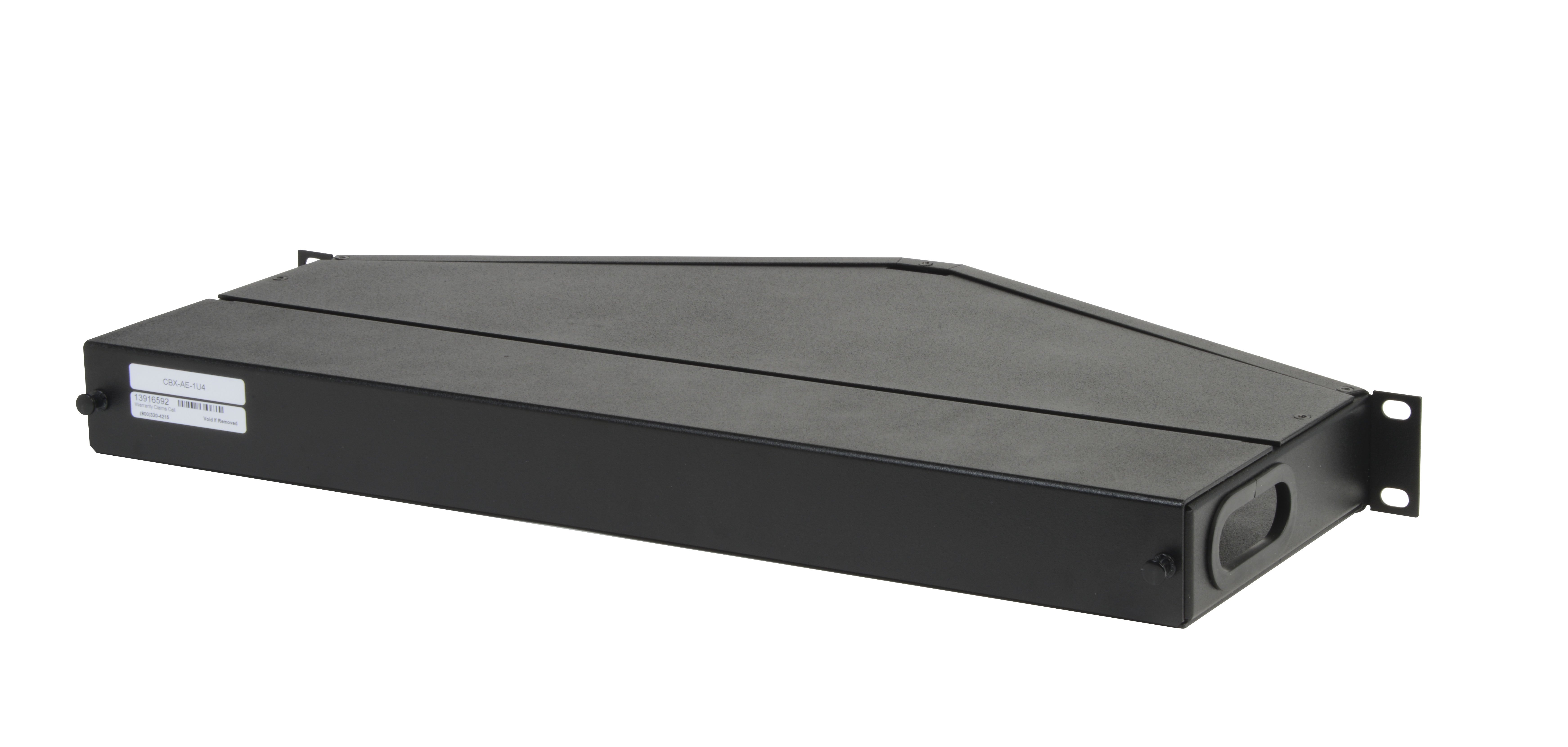

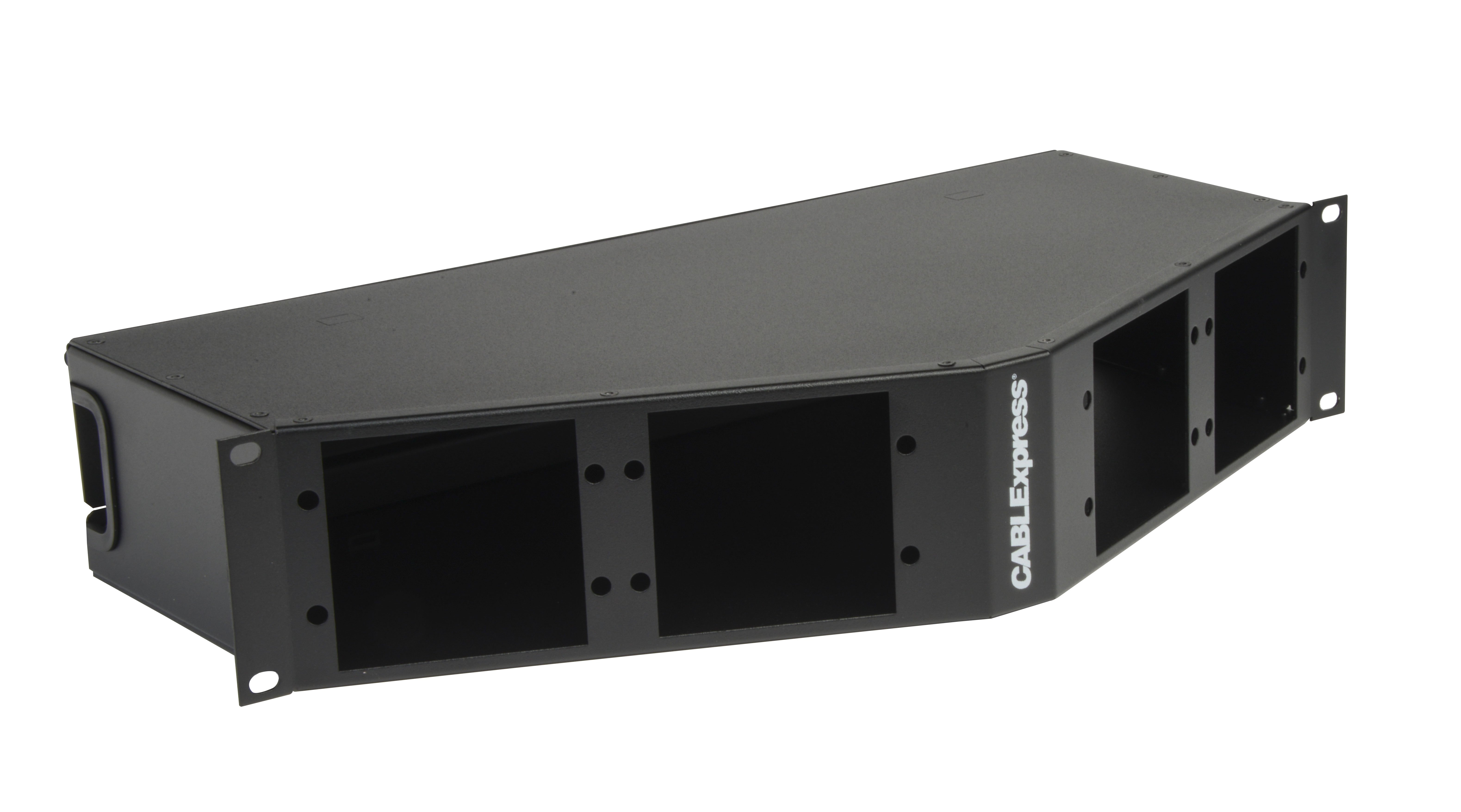

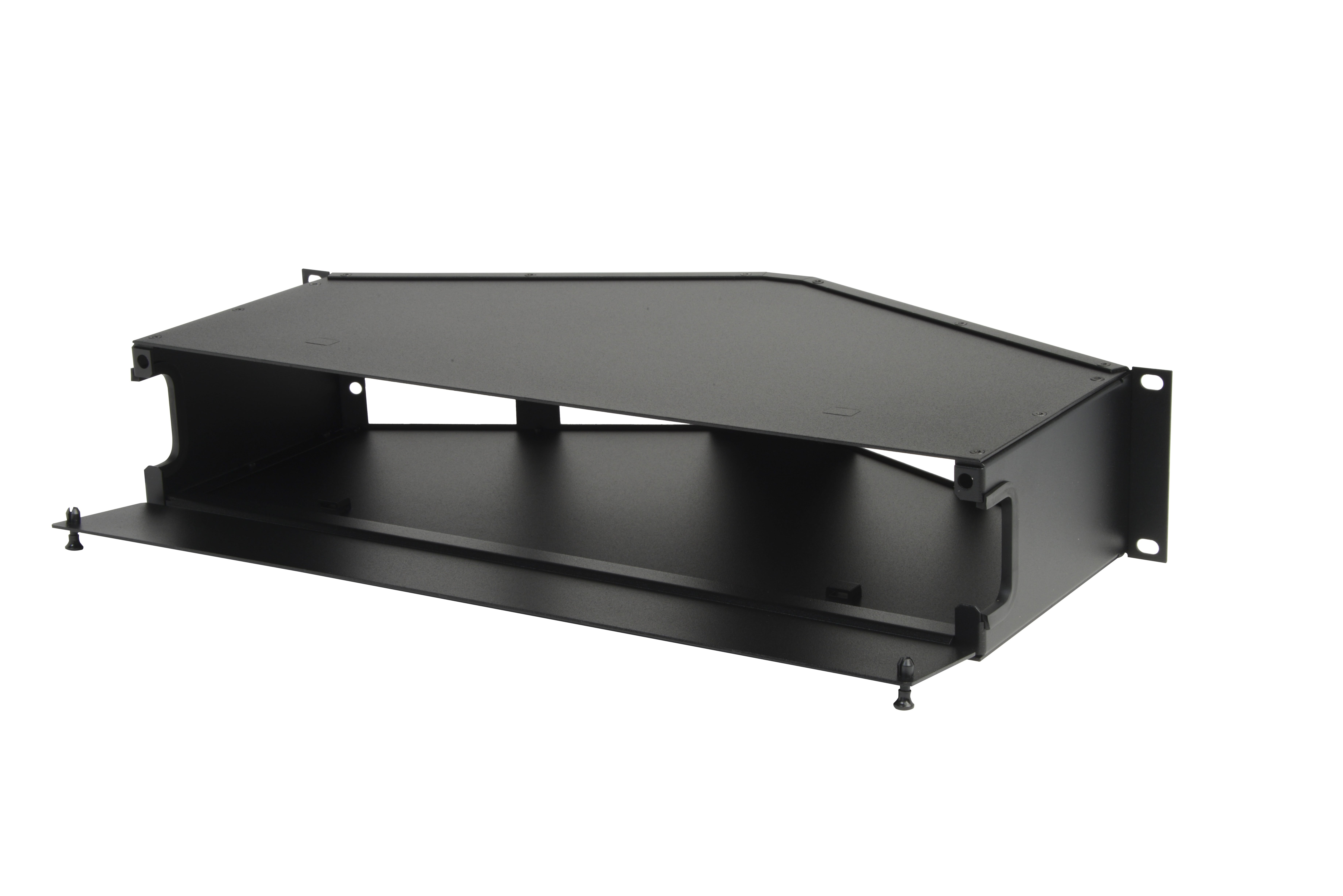

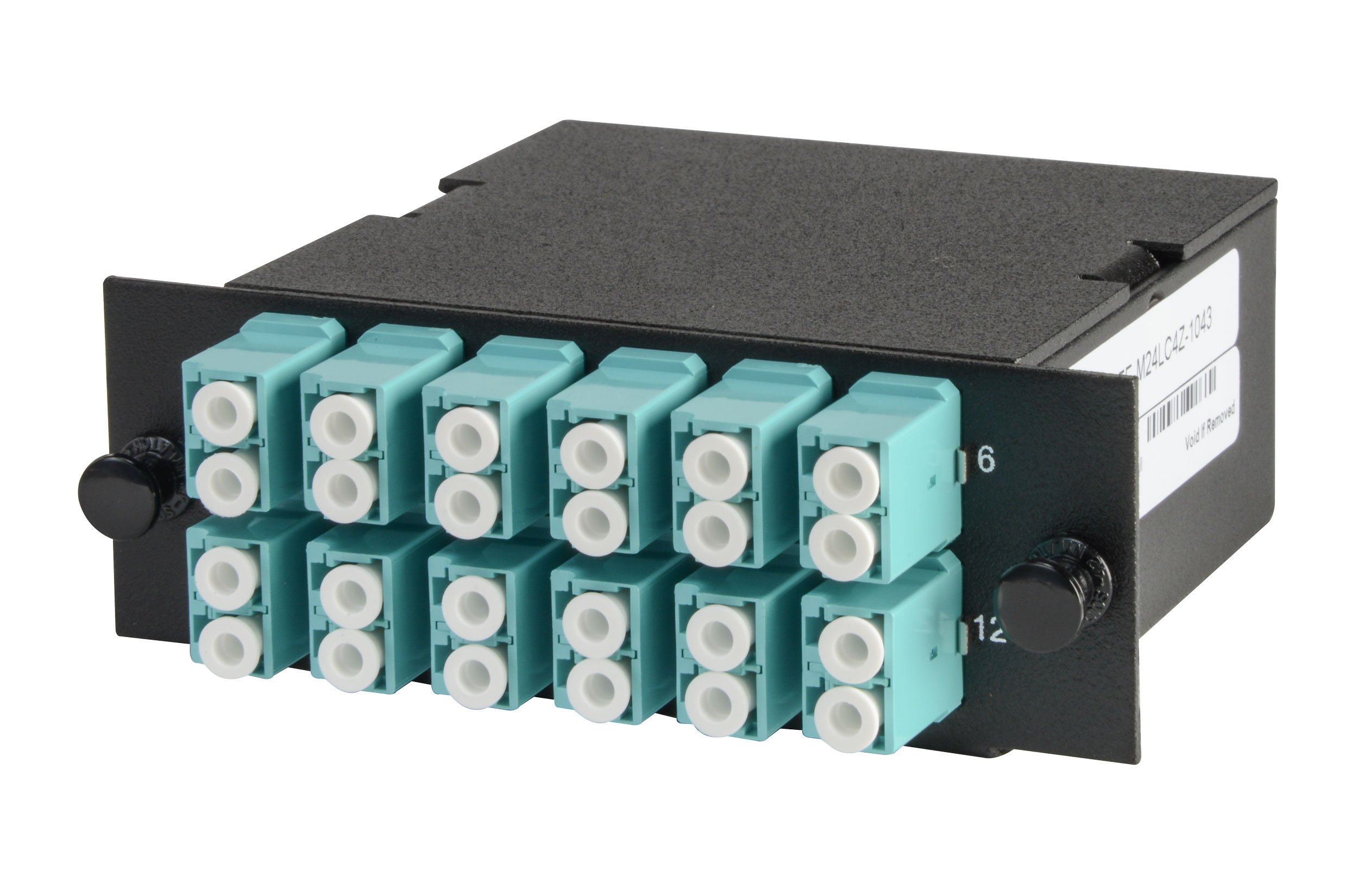

The 1U accepts four modules and/or adapter panels and holds up to 96 fibers. The 2U accepts eight modules and/or adapter panels and holds up to 192 fibers.

- Modular design is scalable to add modules as needed
- Allows for multiple connector types in each enclosure
- Can hold both fiber and copper
- Precision, stable spring couplers optimize performance and ensure network uptime
- Internal cable managers maintain proper bend radius
- Backed by a lifetime warranty

- ![266957_Left-front](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/266957_Left-front.jpg?width=2500&height=1650&name=266957_Left-front.jpg)
- ![650x650Series24Fiber12Port3InModuleBack](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/650x650Series24Fiber12Port3InModuleBack.jpg?width=650&height=650&name=650x650Series24Fiber12Port3InModuleBack.jpg)
- ![299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB.jpg?width=7360&height=4912&name=299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB.jpg)
- ![299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontB](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontB.jpg?width=6315&height=3510&name=299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontB.jpg)
- ![299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontA](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontA.jpg?width=7360&height=4912&name=299636-CABLExpress-2U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELFrontA.jpg)
- ![299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB.jpg?width=6899&height=3015&name=299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackB.jpg)
- ![299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackA](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackA.jpg?width=6970&height=3320&name=299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANELBackA.jpg)
- ![299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANEL FrontA](https://www.cablexpress.com/hs-fs/hubfs/cablexpress_website/.Josh%20Provided/Angled%20Patch%20Panels/299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANEL%20FrontA.jpg?width=7042&height=2562&name=299635-CABLExpress-1U-ANGLED-RACK-MOUNT-FIBER-PATCH-PANEL%20FrontA.jpg)
